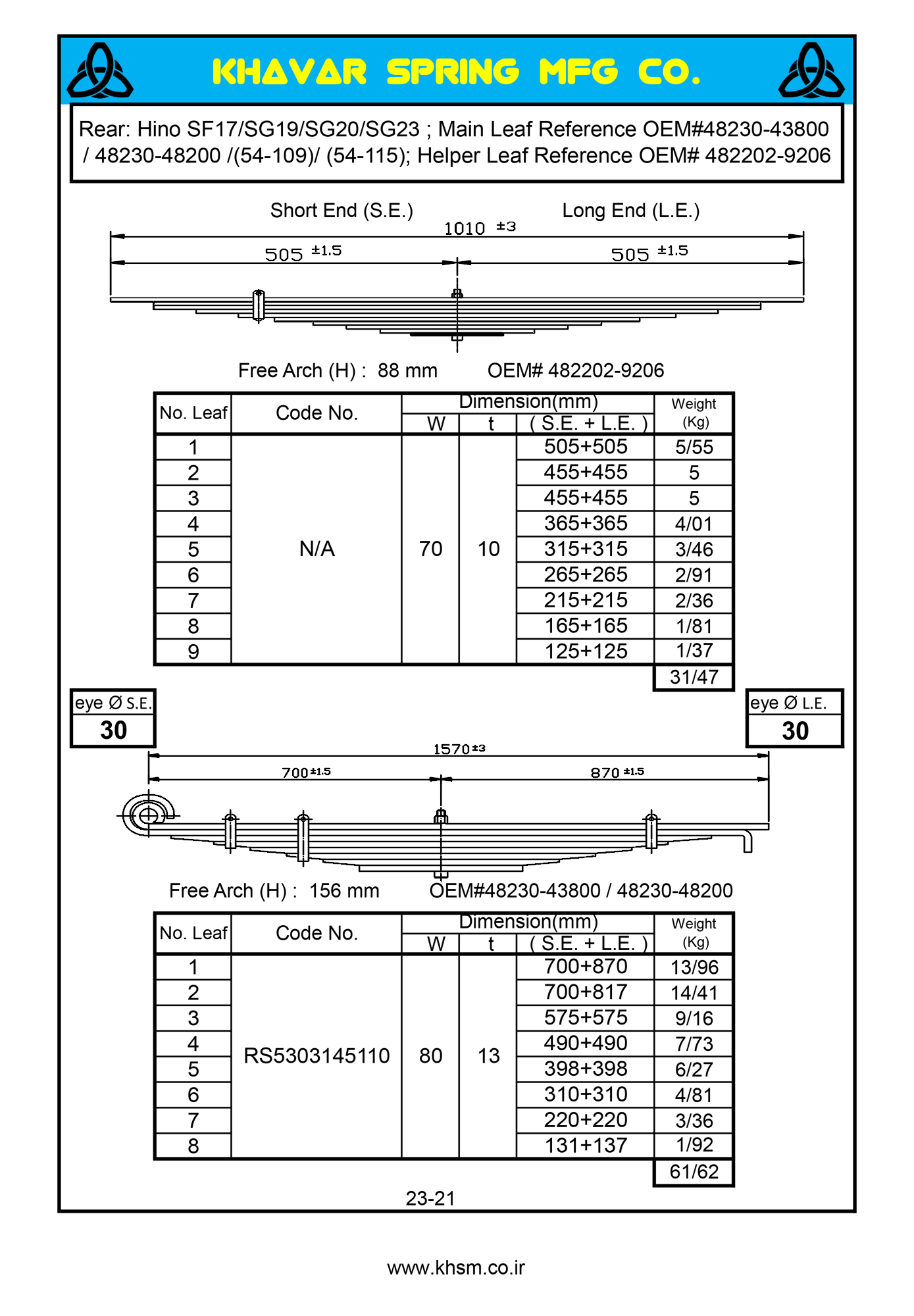

Rear Axle Spring Set Hino SF17/SG19/SG20/SG23
OEM Code : 482202-9206, 48230-43800, 48230-48200
Product Introduction
Rear: Hino SF17/SG19/SG20/SG23
Main Leaf Reference OEM#48230-43800 / 48230-48200 /(54-109)/ (54-115)
Helper Leaf Reference OEM# 482202-9206
Special properties
Technical Specifications
| Vehicle Type | |
|---|---|
| Installation Location | |
| OEM Code | |
| After Market Code | 54-109, 54-115 |
| Leaf Spring Width | |
| Leaf Spring Thickness | |
| Number of Main Layers (M) Leaf Spring | |
| Short edge length - Leaf Spring | |
| Long edge length - Leaf Spring | |
| Leaf Spring Free Arch | 88 |
| Name of Car/ Cabin/ Triler |
