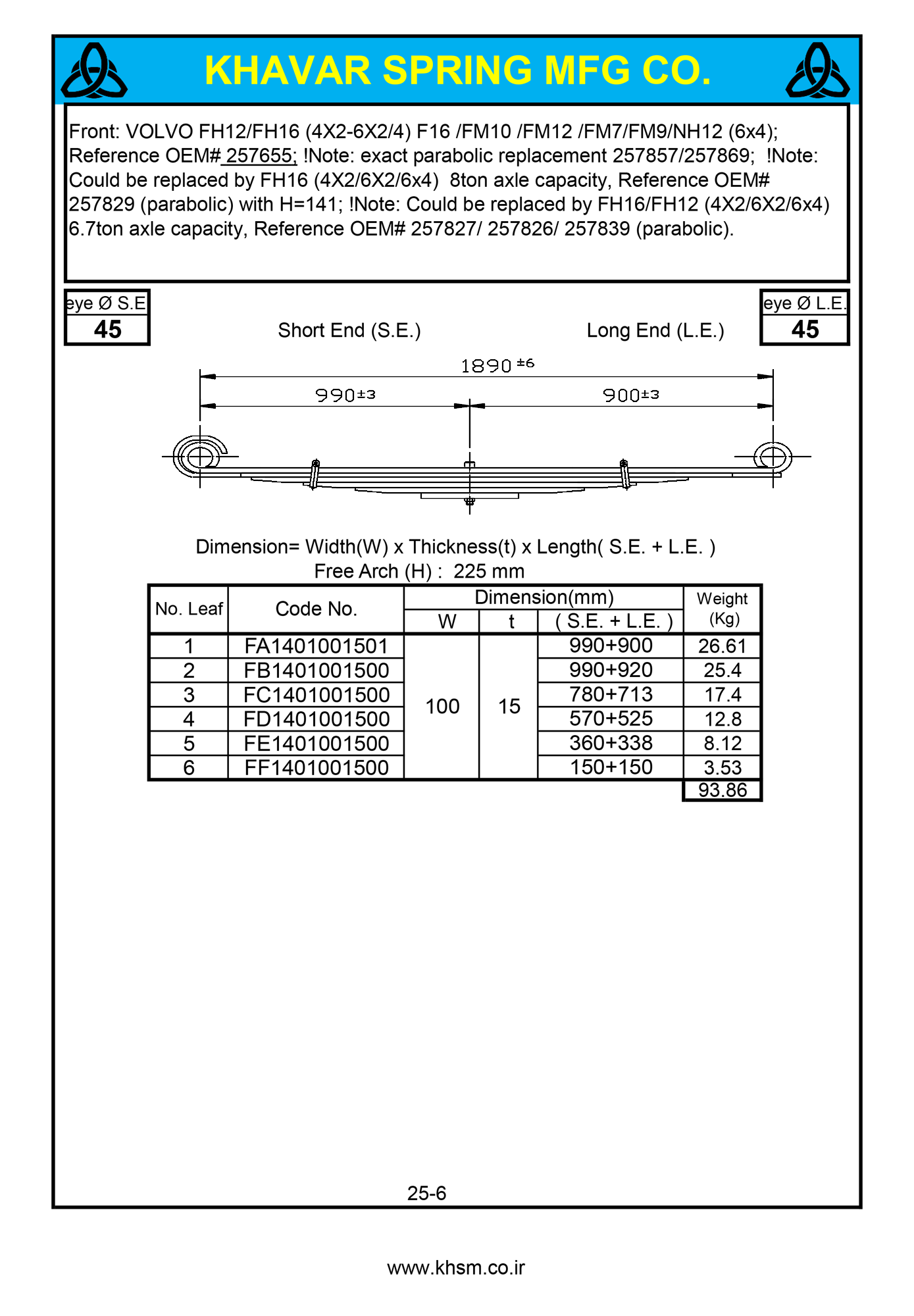

Front Axle Spring Set VOLVO
OEM Code : 257839, 257829, 257826, 257655, 257857, 257869, 57827
Product Introduction
Front: VOLVO FH12/FH16 (4X2-6X2/4) F16 /FM10 /FM12 /FM7/FM9/NH12 (6×4)
Reference OEM# 257655; !Note: exact parabolic replacement 257857/257869
Note: Could be replaced by FH16 (4X2/6X2/6×4) 8ton axle capacity
Reference OEM# 257829 (parabolic) with H=141
Note: Could be replaced by FH16/FH12 (4X2/6X2/6×4) 6.7ton axle capacity
Reference OEM# 257827/ 257826/ 257839 (parabolic)
Special properties
Technical Specifications
| Vehicle Type | |
|---|---|
| Installation Location | |
| OEM Code | |
| Leaf Spring Width | |
| Leaf Spring Thickness | |
| Number of Main Layers (M) Leaf Spring | |
| Short edge length - Leaf Spring | |
| Long edge length - Leaf Spring | |
| Eye diameter (Short edge - Leaf spring) | |
| Eye diameter (Long edge - Leaf spring) | |
| Leaf Spring Free Arch | 225 |
| Name of Car/ Cabin/ Triler | VOLVO FH12/FH16 (4X2-6X2/4) F16 /FM10 /FM12 /FM7/FM9/NH12 (6×4), VOLVO FH16 (4X2/6X2/6×4) 8ton axle capacity, VOLVO FH16/FH12 (4X2/6X2/6×4) 6.7ton axle capacity |
