دست فنر اکسل عقب Toyota
OEM Code : 48218-60660, 48218-60661, 4821060280, 48210-60270, 48210-60250, 48210-60650, 48210-60651
Product Introduction

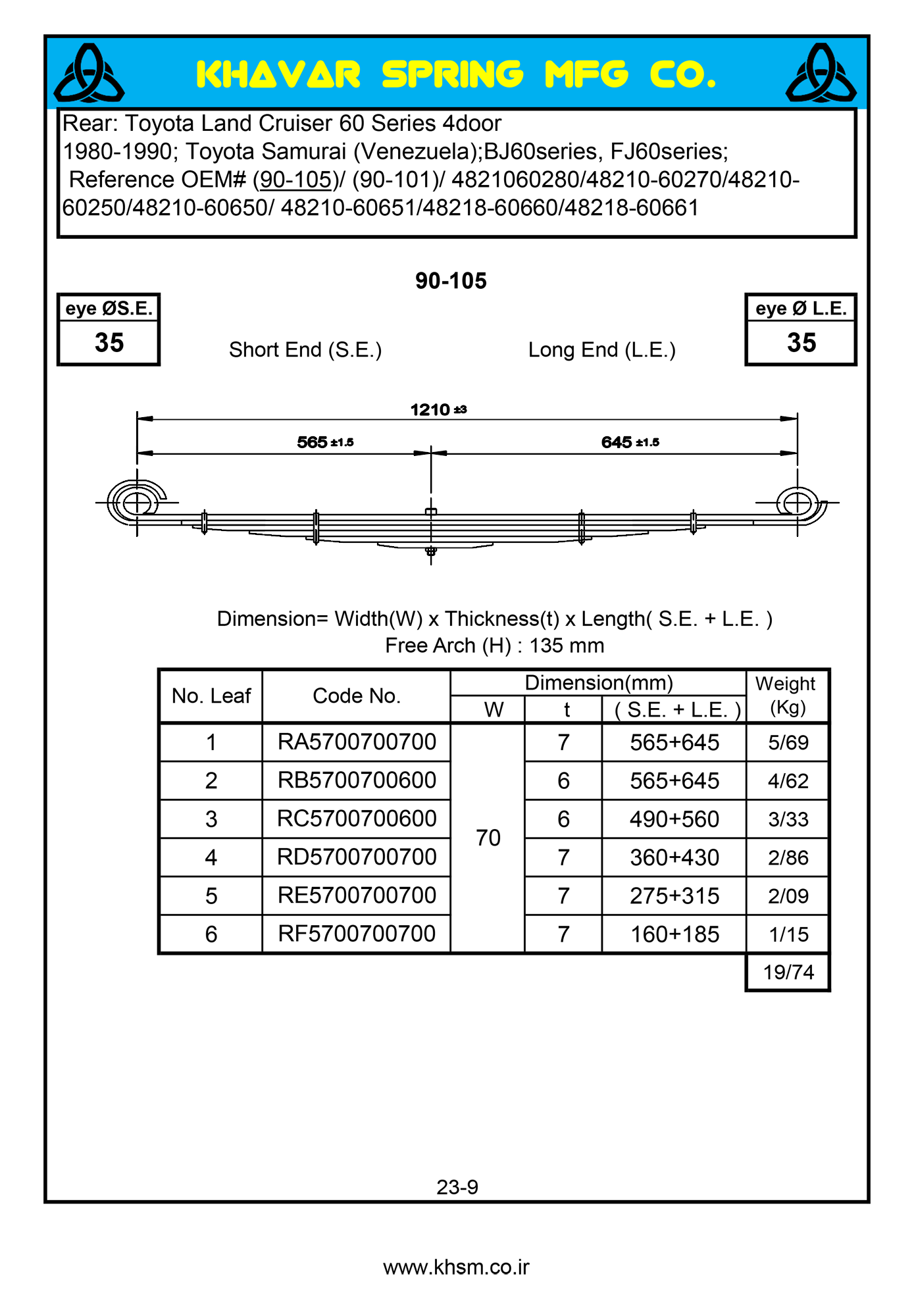

Rear: Toyota Land Cruiser 60 Series 4door 1980-1990; Toyota Samurai (Venezuela);BJ60series, FJ60series
Reference OEM# (90-105)/ (90-101)/ 4821060280/48210-60270/48210-60250/48210-60650/ 48210-60651/48218-60660/48218-60661
Special properties
Technical Specifications
| Vehicle Type | |
|---|---|
| Installation Location | |
| OEM Code | 48210-60250, 48210-60270, 48210-60650, 48210-60651, 4821060280, 48218-60660, 48218-60661 |
| After Market Code | 90-101, 90-105 |
| Leaf Spring Width | |
| Leaf Spring Thickness | |
| Number of Main Layers (M) Leaf Spring | |
| Short edge length - Leaf Spring | |
| Long edge length - Leaf Spring | |
| Eye diameter (Short edge - Leaf spring) | |
| Eye diameter (Long edge - Leaf spring) | |
| Leaf Spring Free Arch | 135 |
| Name of Car/ Cabin/ Triler | FJ60series, Toyota Land Cruiser 60 Series 4door 1980-1990; Toyota Samurai (Venezuela);BJ60series |
