دست فنر چرخ عقب Hyundai و Mitsubishi
OEM Code : 551004A200, 551004A650
Product Introduction

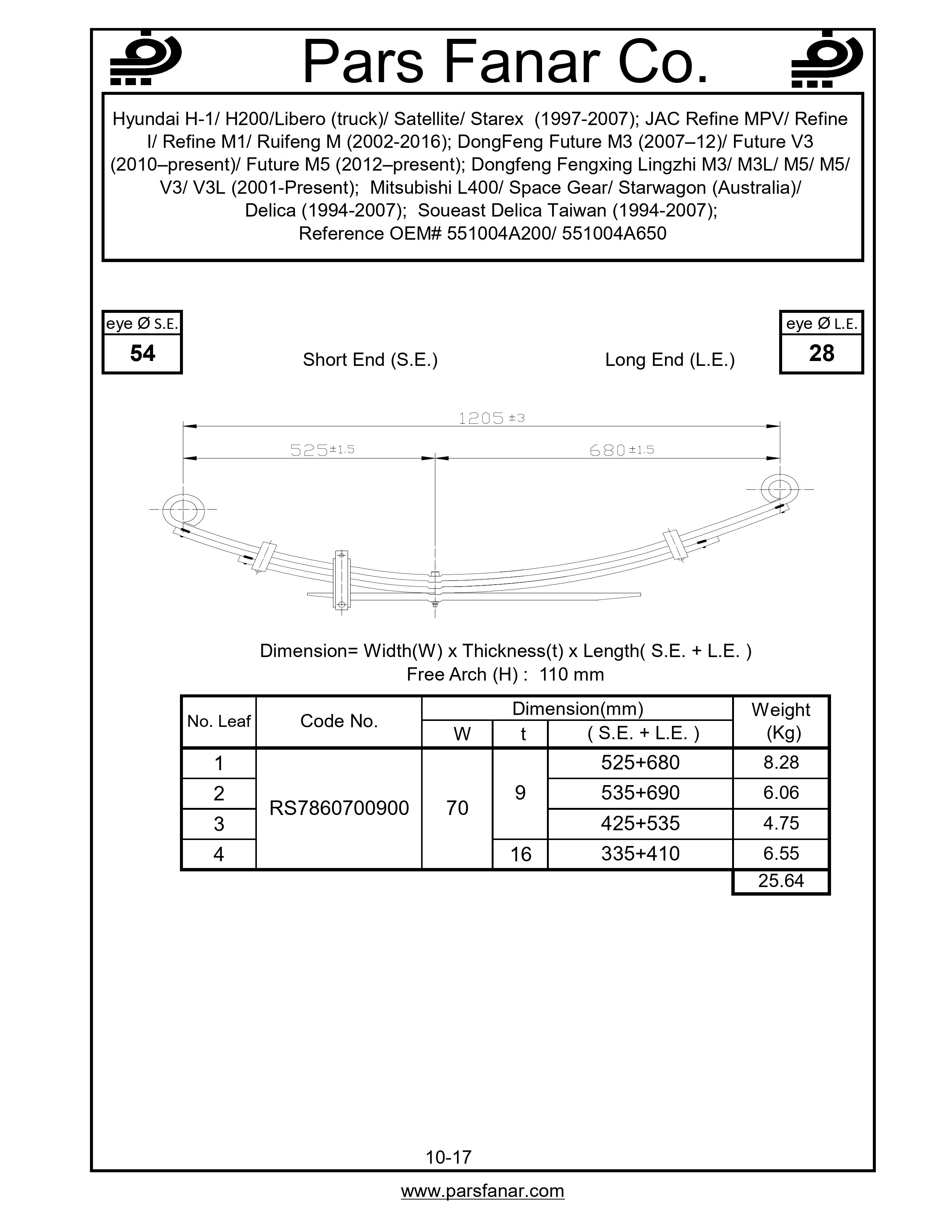

Rear; Hyundai H-1/ H200/Libero (truck)/ Satellite/ Starex (1997-2007); JAC Refine MPV/ Refine I/ Refine M1/ Ruifeng M (2002-2016); DongFeng Future M3 (2007–12)/ Future V3 (2010–present)/ Future M5 (2012–present); Dongfeng Fengxing Lingzhi M3/ M3L/ M5/ M5/ V3/ V3L (2001-Present); Mitsubishi L400/ Space Gear/ Starwagon (Australia)/ Delica (1994-2007); Soueast Delica Taiwan (1994-2007)
Reference OEM# 551004A200/ 551004A650
Special properties
Technical Specifications
| Vehicle Type | |
|---|---|
| Installation Location | |
| OEM Code | |
| Leaf Spring Width | |
| Leaf Spring Thickness | |
| Number of Main Layers (M) Leaf Spring | |
| Short edge length - Leaf Spring | |
| Long edge length - Leaf Spring | |
| Eye diameter (Short edge - Leaf spring) | |
| Eye diameter (Long edge - Leaf spring) | |
| Leaf Spring Free Arch | 110 |
| Name of Car/ Cabin/ Triler | Dongfeng Fengxing Lingzhi M3/ M3L/ M5/ M5/ V3/ V3L, DongFeng Future M3 (2007–12), DongFeng Future M5 (2012–present), DongFeng Future V3 (2010–present), Hyundai H-1, Hyundai H200, Hyundai Libero (truck), Hyundai Satellite, Hyundai Starex, JAC Refine I, JAC Refine M1, JAC Refine MPV, JAC Ruifeng M, Mitsubishi Delica, Mitsubishi L400, Mitsubishi Space Gear, Mitsubishi Starwagon (Australia), Soueast Delica Taiwan |
