دست فنر چرخ عقب وانت Mazda
OEM Code : FAM28010, BDM28010, 863728010A, BD02-28010
Product Introduction

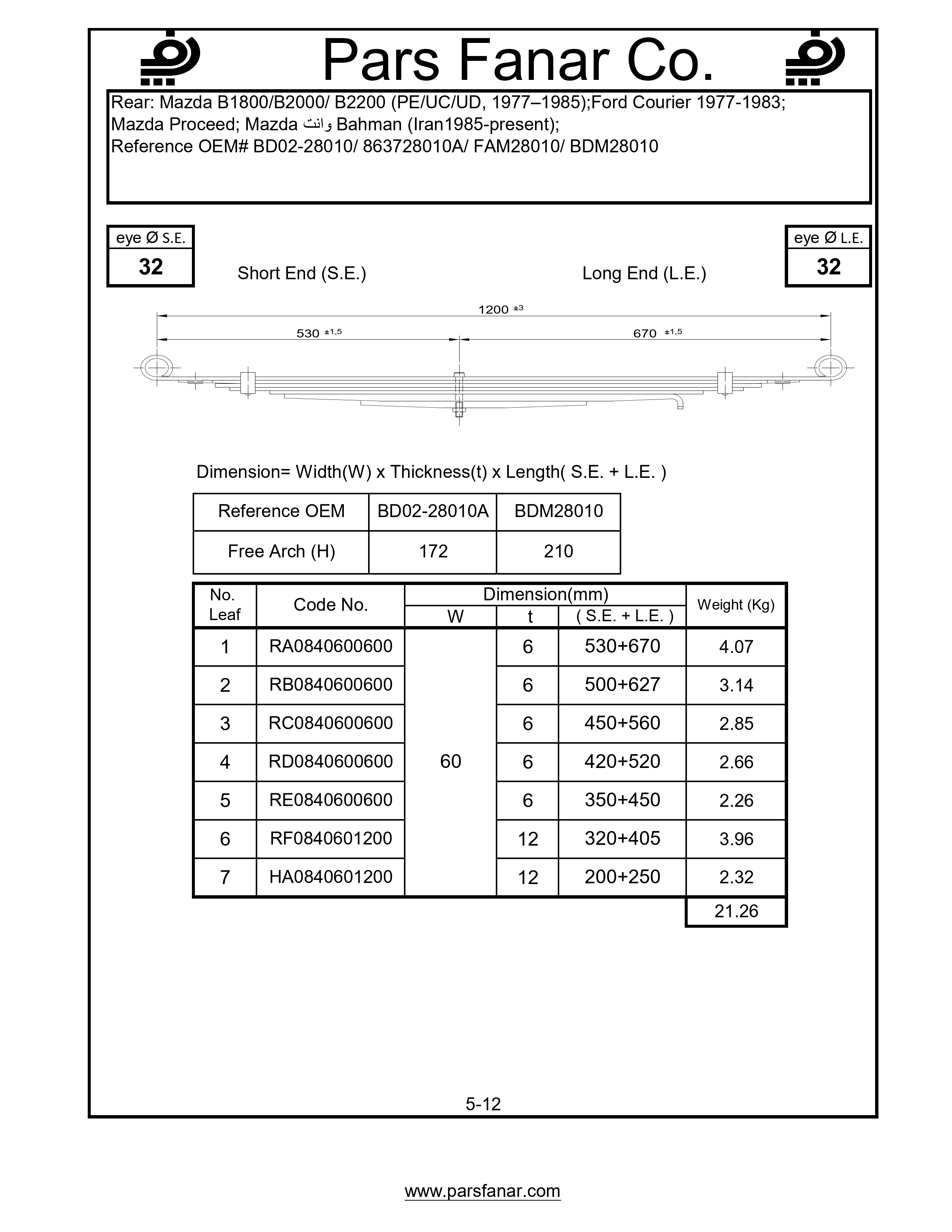

Rear: Mazda B1800/B2000/ B2200 (PE/UC/UD, 1977–1985)
Ford Courier 1977-1983;Mazda Proceed; Mazda وانت Bahman (Iran1985-present)
Reference OEM# BD02-28010 / 863728010A / FAM28010 / BDM28010
Special properties
Technical Specifications
| Vehicle Type | |
|---|---|
| Installation Location | |
| OEM Code | |
| Leaf Spring Width | |
| Leaf Spring Thickness | |
| Number of Main Layers (M) Leaf Spring | |
| Short edge length - Leaf Spring | |
| Long edge length - Leaf Spring | |
| Eye diameter (Short edge - Leaf spring) | |
| Eye diameter (Long edge - Leaf spring) | |
| Leaf Spring Free Arch | 210 |
| Name of Car/ Cabin/ Triler | Ford Courier, Mazda B1800, Mazda B2000, Mazda B2200 (PٍE/UC/UD), Mazda Proceed, Mazda وانت Bahman (Iran1985-present) |
